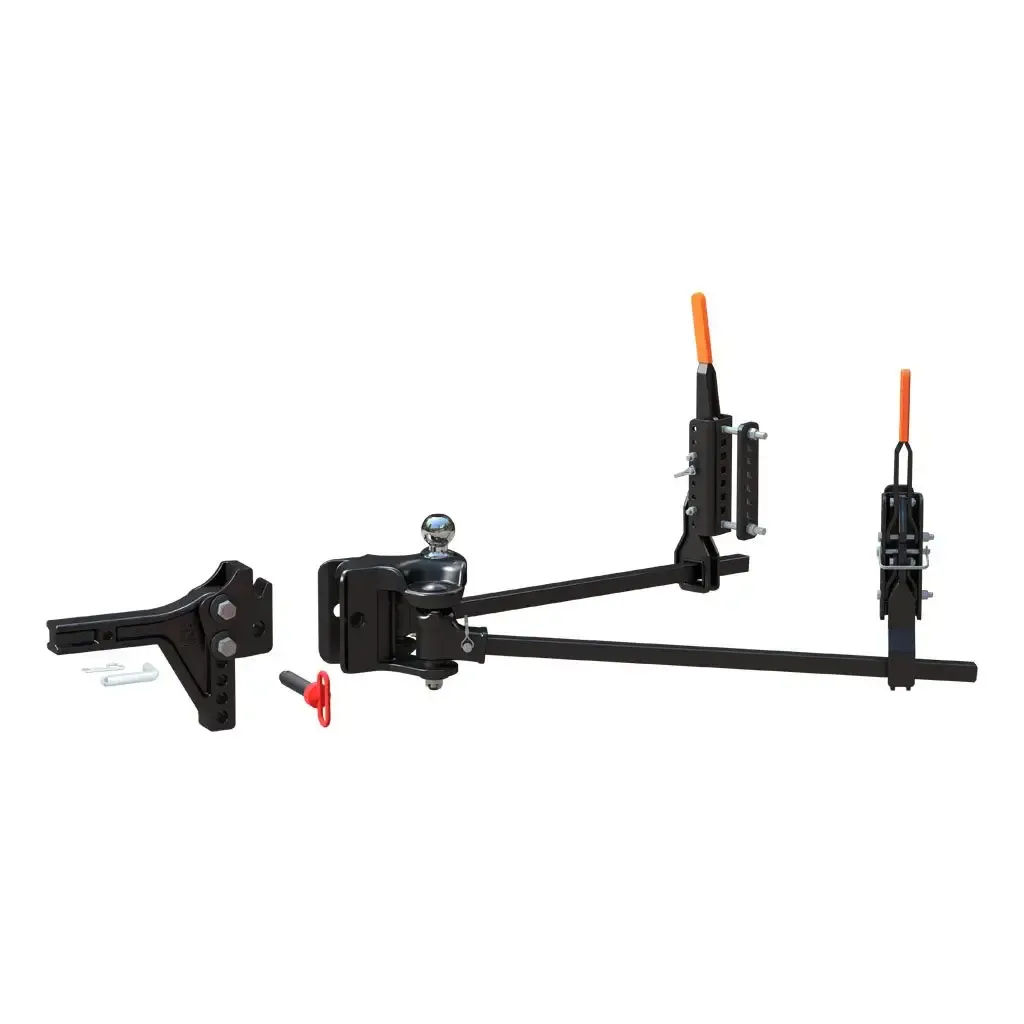

TruTrack 4P Trailer-Mounted Weight Distribution Hitch, 8-10K
Installation Guide
Product Overview
The CURT TruTrack weight distribution hitch is easy to couple and doesn't require adjusting the spring bars after initial setup. Traditional WD hitches require the spring bars to be connected and disconnected each time the trailer and tow vehicle are hitched or unhitched. This means the TruTrack can be quickly coupled and uncoupled without resetting the spring bars, making the coupling process a breeze. Simply set up the TruTrack and then couple or uncouple your trailer using the quick-connect hitch when you need to separate the trailer and tow vehicle.
The TruTrack features the same trusted and reliable technology that all TruTrack products are known for. The WD system helps to distribute weight evenly across the coupling point by using spring bars that distribute the weight of the trailer across all axles and keep the trailer and tow vehicle more level to the ground. The spring bars and head provide four points of control to actively prevent the trailer from swaying and the hitch from sagging, promoting a safe and steady tow. The TruTrack provides a convenient coupling process and reliable control that promotes a sway-free towing experience when moving at higher speeds.
This CURT TruTrack 4P system is rated up to 10,000 lbs. gross trailer weight, and it comes with a durable carbide black powder coat finish for long-lasting corrosion resistance
Key Features & Attributes
- Patent-pending trailer-mounted design simplifies installation and decoupling
- Independent, two-part system eases lifting by keeping hitch weight on trailer
- Prevents need to uninstall spring bars or remove hitch when disconnecting
- Innovative horn cradles the trailer head, providing effortless coupling
- Unique snap-up brackets mount spring bars with no extra tools needed to lift
- Integrated sway control actively resists sway and levels the vehicle and trailer
- Four points of sway control work together to keep trailer aligned
- Brackets use friction to resist lateral movement and distribute weight evenly
- Adjustable brackets provide fixed support unlike spring bar chain models
- Head tilt adjustment feature simplifies setup and eliminates need for washers
- Equipped with durable, forged steel spring bars for reliable strength
- Heavy-duty, fabricated head can be used for precise leveling
- Up to 10,000 lbs. GTW / 1,000 lbs. TW
- Protected by a durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
- Notes:
- Capacity limited to lowest rated towing component
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 17520 |
| UPC Code | 612314056576 |
| AAIA Code | BKDK |
| Vendor Code | C93 |
| Gross Trailer Weight (GTW) | 10,000 LBS |
| Hub Warehouse (HUB_USA) | D25 |
| Master Case Qty | 1 |
| Material | CAST STEEL |
| Mount Type Description | Not Applicable |
| Pallet Qty | 18.000 |
| Parcel Allowed | Yes |
| Part Type | * |
| Product Weight | 141.000 |
| Shipping Weight | 141.000 |
| Side Application Type Description | Not Applicable |
| Tongue Weight (TW) |
1,000 LBS |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
