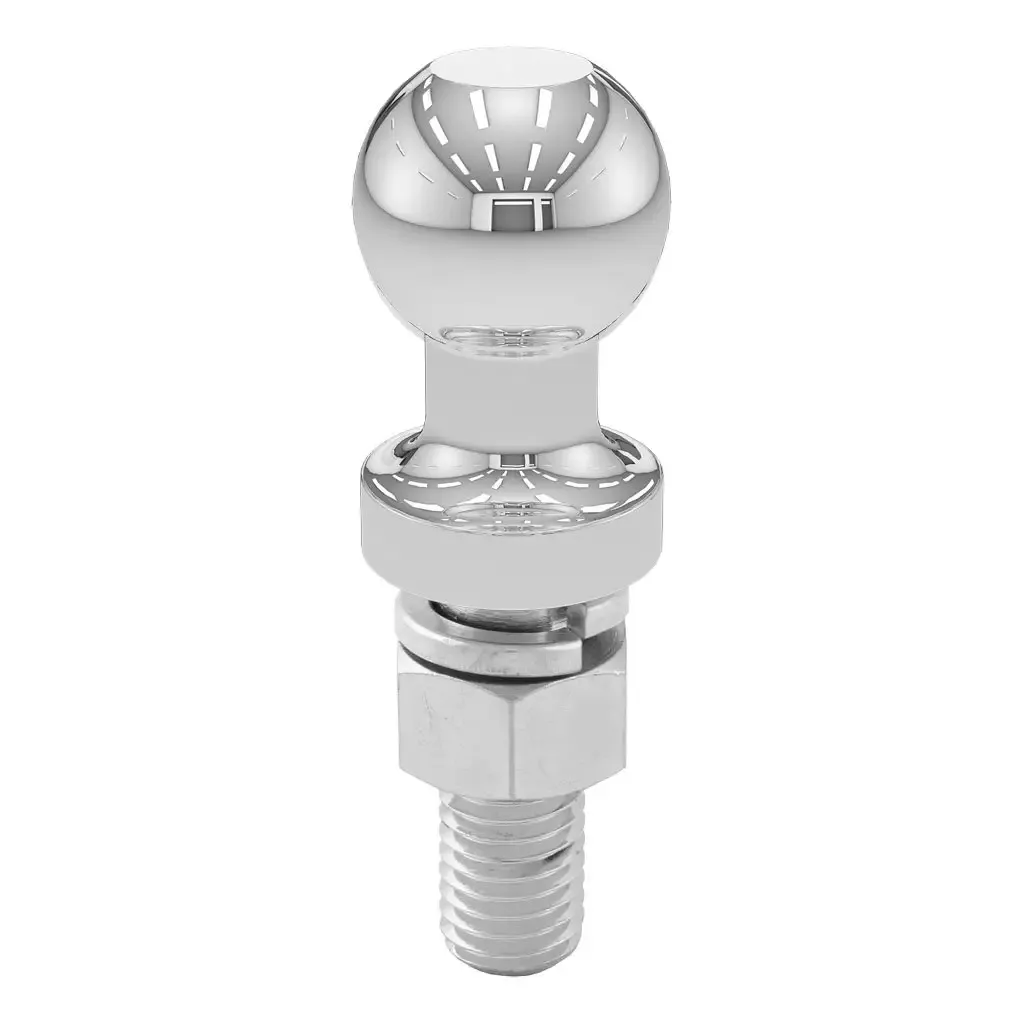

Replacement 1-1/4" Sway Control Ball (5/8" x 1-3/4" Shank)
Product Overview
A sway control unit is an inexpensive solution to the problem of a wandering trailer. CURT sway control units are designed to attach to your vehicle and trailer at the coupling point and counteract any lateral movement in your trailer, keeping your tow load straighter on the road and giving you more control over your vehicle. The sway bar uses a material like that used in brake pads to provide the necessary resistance while still allowing your vehicle to complete proper turns with your trailer attached. The sway control mounts onto the frame of your trailer and connects to the vehicle's ball mount using a separate trailer ball from that used for coupling the trailer.
This sway control replacement ball is designed to attach a sway control unit to the vehicle-side of the connection. With its 5/8" shank diameter, it mounts into the mounting tab of a weight distribution hitch or a sway control ball mount. It features a ball diameter of 1-1/4" to fit the CURT sway control unit #17200 and features a chrome-plated finish for long-lasting rust resistance.
Key Features & Attributes
- Hitch-mounted attachment ball for the sway control unit #17200
- 5/8" diameter shank fits sway tab ball mount #45820 or weld-on sway tab #45822
- Sway control helps reduce lateral trailer movement
- Constructed from high-strength steel
- Protected by a durable chrome-plated finish
- Zinc-plated hex nut and helical lock washer for secure mounting
- Notes:
- The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
- Sway control helps reduce lateral trailer movement
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 40093 |
| NTP Number | 72-1936 |
| UPC Code | 612314193004 |
| AAIA Code | BKDK |
| Vendor Code | C93 |
| Ball | Diameter 1-1/4 IN |
| color Silver | |
| Finish Chrome | |
| Hub Warehouse (HUB_USA) D25 | |
| Master Case Qty | 50 |
| Material Blank | |
| Pallet Qty | 0.000 |
| Parcel Allowed | Yes |
| Part Type Replacement Sway Control Ball | |
| Product Sway Control Replacement Hitch Ball | |
| Shank Diameter | .625 |
| Shank | Length 1 3/4 IN |
| Shipping Weight | 0.600 |
