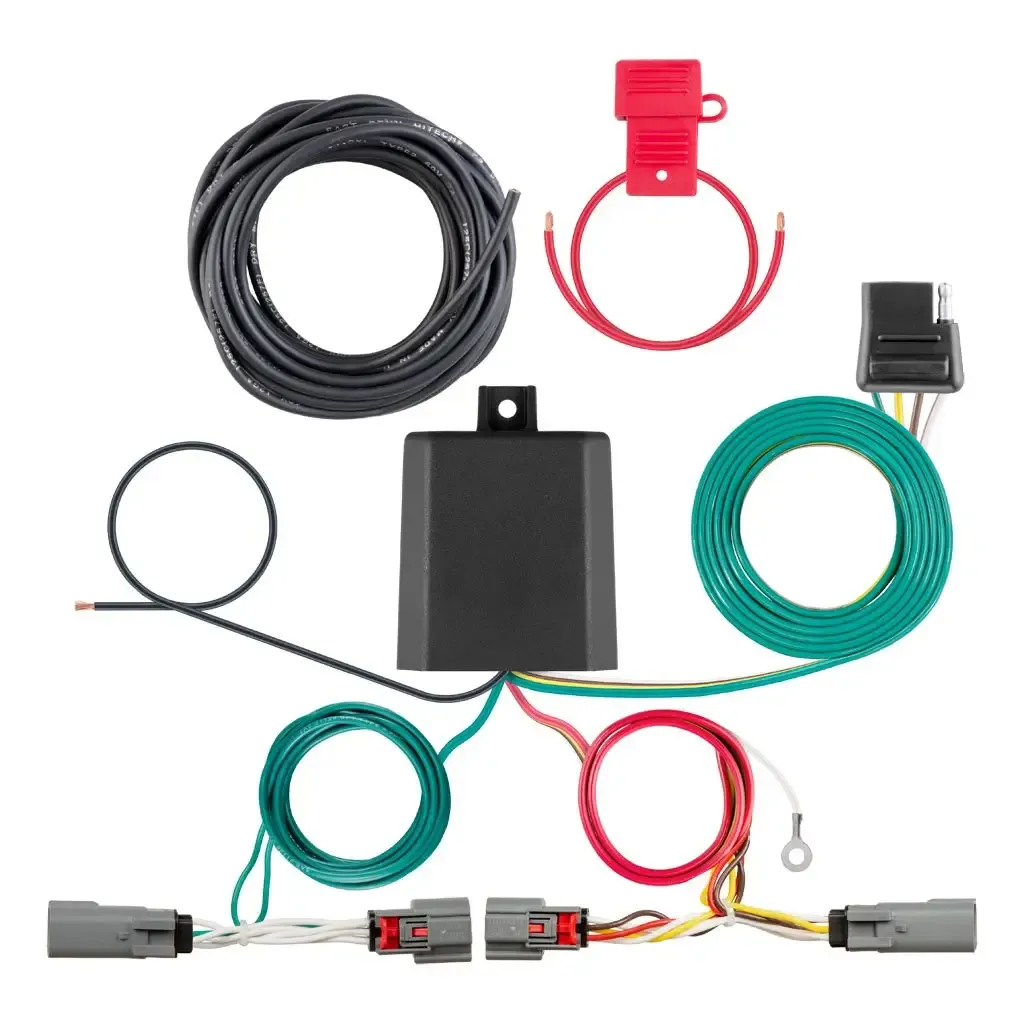

Custom Wiring Harness, 4-Way Flat Output, Select Mazda CX-5, CX-50
Product Overview
CURT custom wiring provides everything you need to connect your vehicle's electrical system to a trailer. With plug-and-play connectors, a custom wiring harness easily integrates with your vehicle taillights to provide a standard trailer wiring connector, typically in the form of a 4-way flat. x000D
This custom wiring harness features a vehicle-specific design to perfectly fit certain years of the Mazda CX-5 and CX-50 (to verify vehicle compatibility, see the CURT application guide or use the Vehicle Lookup on the CURT website). It uses OEM-compatible connectors to "T" into the vehicle's taillight assembly and provides a standard 4-way flat output to power the taillights, brake lights and turn signals on your trailer. x000D
To complete this custom wiring harness, it comes with a rubber dust cover. This cover keeps the connection points clean and well protected when the connector is not in use. Once installed, the connector can also be conveniently mounted on the vehicle's trailer hitch receiver tube, using a CURT Easy-Mount connector bracket.
Key Features & Attributes
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
- Notes:
- Vehicle battery connection required
- Includes fuse holder, battery connection wiring and other necessary wiring components
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 56487 |
| NTP Number | 07-9714 |
| UPC Code | 612314564873 |
| AAIA Code | BKDK |
| Battery-Powered | Yes |
| Color | Black |
| Converter | Type Circuit Protected, Powered |
| Electrical | Component Location Vehicle / Trailer |
| Electrical | System Type 3W |
| Finish | Blank |
| Hub | Warehouse (HUB_USA) D25 |
| Installation | Difficulty Professional |
| Installation | Time Exact 4 |
| Master | Case Qty 12 |
| Material | THERMOPLASTIC RUBBER |
| Mount | Type Description Not Applicable |
| Output | Type 4-Way Flat |
| Pallet | Qty 0.000 |
| Parcel | Allowed Yes |
| Shipping | Weight 1.762 |
| Side | Application Type Description Not Applicable |
| T-Connector | Location S3,S4 |
| Tail | Light Circuits 6.0 Amps |
| Turn | and Brake Circuits 3.0 Amps |
