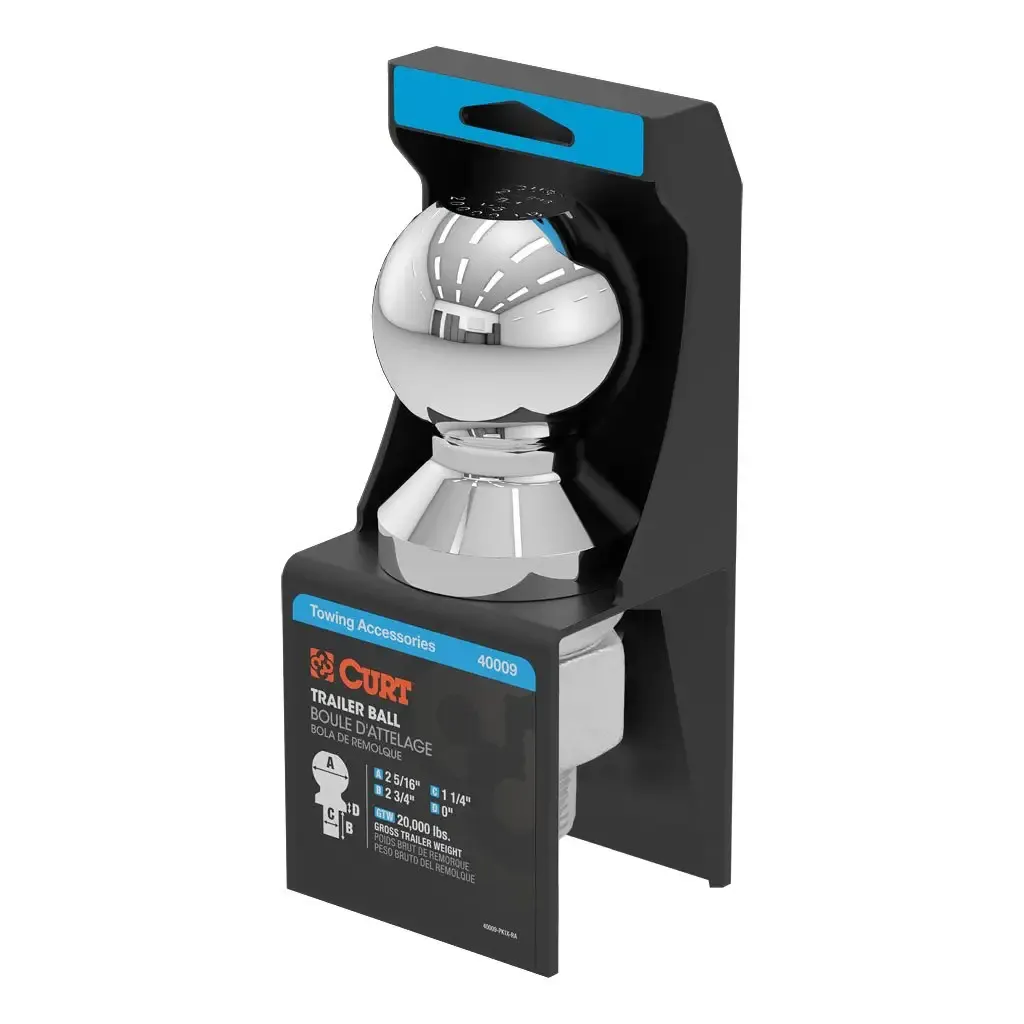

2-5/16" Trailer Ball (1-1/4" x 2-3/4" Shank, 20,000 lbs., Chrome)
Product Overview
The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).
This 2-5/16" trailer ball features a ball capacity of 20,000 lbs. It features a 1-1/4" shank diameter, a 2-3/4" shank length and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
Key Features & Attributes
- Fits 2-5/16" couplers and accepts up to 20,000 lbs. GTW
- Constructed from high-strength, hot-forged steel
- Protected by a durable chrome-plated finish
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 40009 |
| NTP Number | 64-4900 |
| UPC Code | 612314400096 |
| AAIA Code | BKDK |
| Ball | Capacity 20,000 LBS |
| Ball | Diameter 2-5/16 IN |
| Color | Silver |
| Finish | CHROME-PLATED |
| Hub | Warehouse (HUB_USA) D25 |
| Master | Case Qty 12 |
| Material | FORGED STEEL |
| Pallet | Qty 0.000 |
| Parcel | Allowed Yes |
| Part | Type 2 5/16" Trailer Ball |
| Product | Weight 4.200 |
| Shank | Diameter 1.25 |
| Shank | Length 2 3/4 IN |
| Shank | Rise 0 IN |
| Shipping | Weight 4.200 |
| Torque | 450 FT LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
