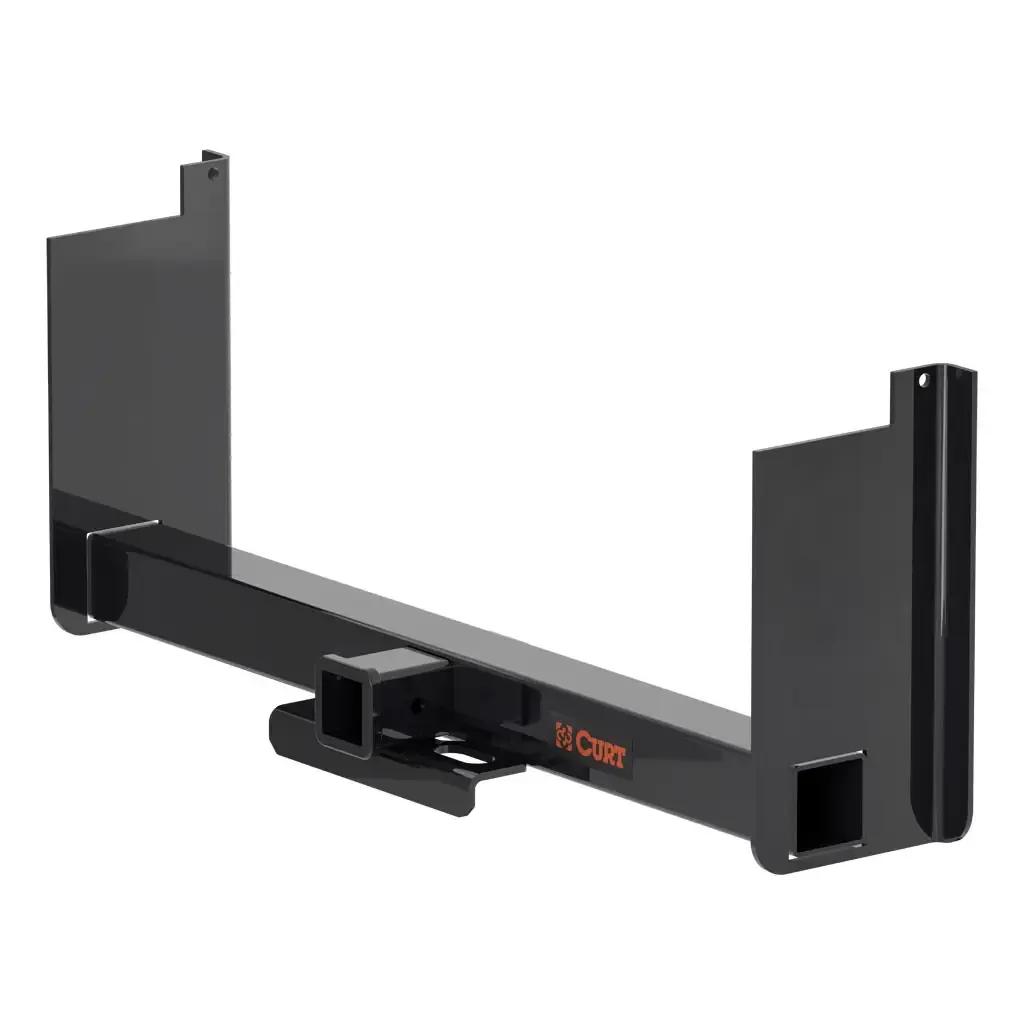

Universal Weld-On Trailer Hitch, 2-1/2" Receiver (Up to 44" Frames, 18" Drop)
Installation Guide
Product Overview
A CURT weld-on trailer hitch is a unique towing option for your vehicle. As the name suggests, a weld-on hitch is designed to be welded directly onto the frame, using its thick side plates. While the installation of a weld-on hitch is far different from that of CURT custom hitches, weld-on hitches offer a high weight carrying capacity and a reliable towing solution when installed properly. They also come in a three-piece design: a main body and two attachable side plates that allow the hitch to fit multiple vehicle frames.
Having a weight rating comparable to a class 5 trailer hitch, weld-on hitches work well on 1/2-ton, 3/4-ton and 1-ton pickup trucks, including service body vehicles, and they are excellent for towing a variety of heavy-duty trailers, such as toy haulers, dump trailers, logging trailers, gravity boxes and small yacht trailers (NOTE: Never exceed the lowest weight capacity of any towing component). This particular weld-on hitch features a 2-1/2" x 2-1/2" receiver tube opening. It comes with a scratch-resistant and rust-resistant black powder coat finish and requires no hardware for installation. It is able to fit a frame up to 44" wide.
Key Features & Attributes
- Adjustable frame fits a variety of vehicles (side plates do not come pre-welded)
- Fits truck frames up to 44" wide
- Rated as a class 5 hitch
- Tested for safety in accordance with SAE J684
- Great for use with utility boxes
- Protected by a highly durable black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Made in USA
Notes:
- Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
- Adjustable side plates come detached from the main body of the hitch and must be welded on
- Adjustable side plates come detached from the main body of the hitch and must be welded on
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 15924 |
| UPC Code | 612314159246 |
| AAIA Code | BKDK |
| Vendor Code | C93 |
| Drop | 18 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Hub Warehouse (HUB_USA) | D01 |
| Main Body Shape Square | Square |
| Master Case Qty | 0 |
| Material | Carbon Steel |
| Mount Type Description | Not Applicable |
| Pallet Qty | 20.000 |
| Parcel Allowed | Yes |
| Part Type | Weld-On Trailer Hitch |
| Product Weight | 60.000 |
| Receiver Tube Size | 2-1/2 IN |
| Shipping Weight | 70.000 |
| Side Application Type Description | Not Applicable |
| Tongue Weight (TW) 2,000 LB | 2,000 LB |
| Weight Carrying Capacity (WC) | 20,000 LB |
| Warranty | Limited Lifetime |
