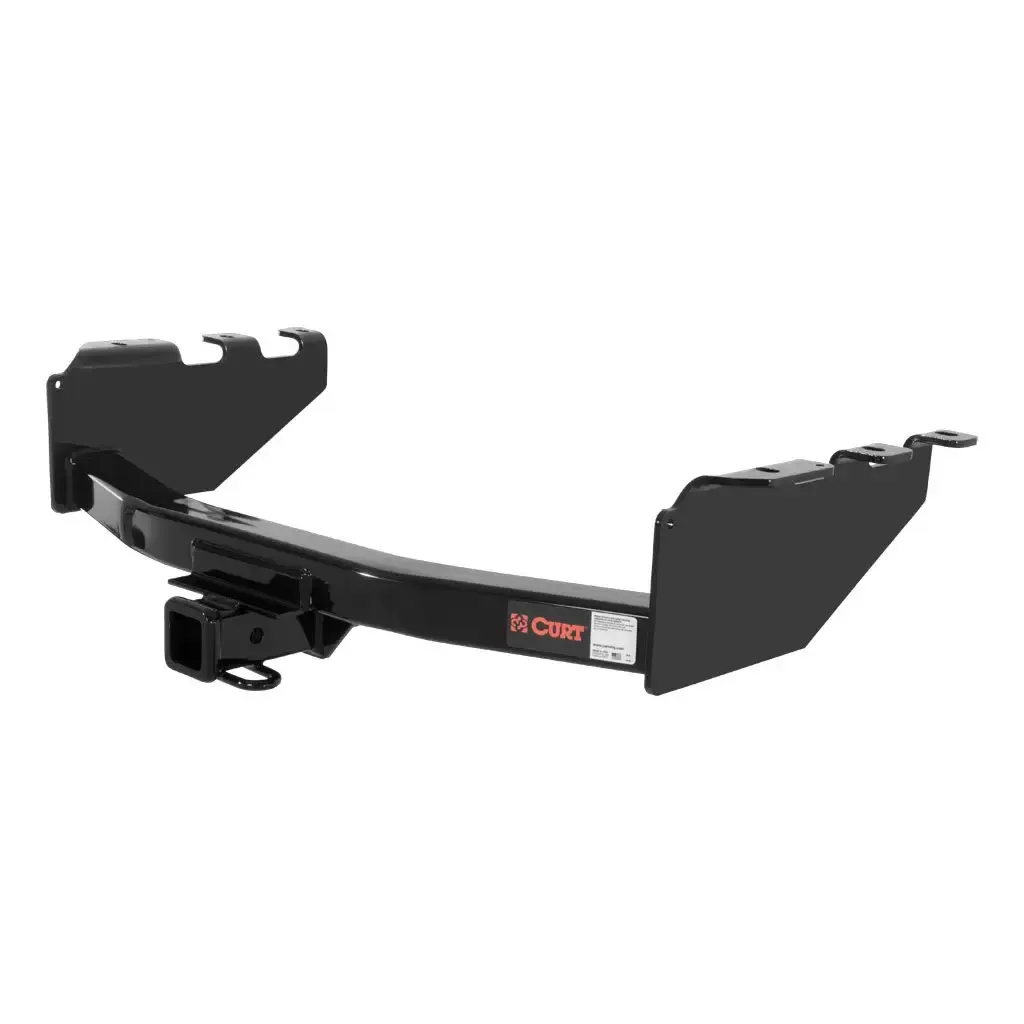

Class 4 Trailer Hitch, 2" Receiver, Select Chevrolet Silverado, GMC Sierra 1500
Product Overview
Towing some equipment out to the jobsite? Pulling the ATVs up to the family cabin? Hauling your pontoon boat out to the lake? Whatever tasks you need to finish, finish them with confidence and finesse with a CURT trailer hitch.
CURT class 4 trailer hitches are engineered for hard work as much as they are for play. They are built with high-strength American steel, welded into a solid, one-piece design for superior dependability. With their enhanced construction, class 4 hitches are typically used on full-size pickup trucks, SUVs and full-size vans. They're excellent for commercial jobs as well as heavy-duty non-commercial towing.
Like all CURT class 1 to class 5 hitches, each class 4 hitch is made with a vehicle-specific design. This means that for virtually every vehicle application, we produce a unique hitch model. A vehicle-specific fit ensures maximum towing capacity, an optimized look on the vehicle and a custom fit without any difficult modifications.
This particular class 4 hitch is engineered to fit specific years and styles of the Chevy Silverado 1500, 1500 Classic or 1500 HD Classic and GMC Sierra 1500, 1500 Classic or 1500 HD Classic (see application information to verify compatibility with your vehicle). It comes with all necessary mounting hardware for a complete installation.
This class 4 GMC / Chevy hitch is built, tested and rated with a weight carrying capacity of 10,000 pounds gross trailer weight and 1,000 pounds tongue weight. It is also compatible with a weight distribution hitch with a weight capacity of 12,000 pounds WD and 1,200 pounds WDTW. This makes it an excellent choice for towing a variety of trailers from equipment haulers and larger utility trailers to full-size travel trailers and boat trailers (never exceed the weight capacity of the lowest-rated towing component).
All class 4 tow hitches are equipped with a 2" x 2" hitch receiver.
Key Features & Attributes
- Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
- Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 14301 |
| NTP Number | 72-1560 |
| UPC Code | 612314143016 |
| AAIA Code | BKDK |
| Color | Black |
| Drilling | Required No |
| Finish | Powder Coated |
| Hub | Warehouse (HUB_USA) D01 |
| Installation | Difficulty Novice |
| Main | Body Shape Square |
| Master | Case Qty 0 |
| Material | Carbon Steel |
| Pallet | Qty 18.000 |
| Parcel | Allowed Yes |
| Part | Type Class 4 Trailer Hitch |
| Product | Weight 52.000 |
| Receiver | Tube Size 2 IN |
| Shipping | Weight 59.000 |
| Tongue | Weight (TW) 1,000 LB |
| Weight | Carrying Capacity (WC) 10,000 LB |
| Weight | Distribution (WD) 12,000 LB |
| Weight | Distribution Tongue Weight (WDTW) 1,200 LB |
