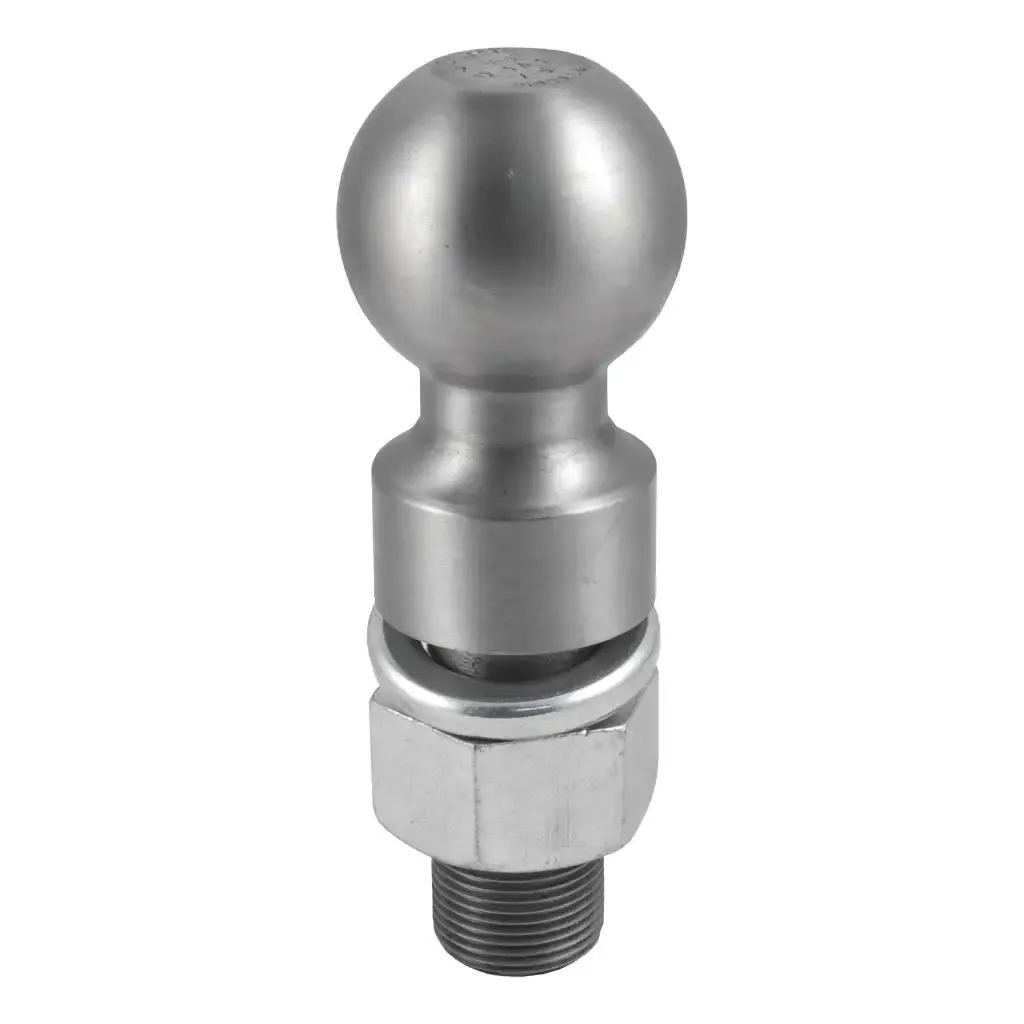

2-5/16" Trailer Ball (1-1/4" x 2-5/8" Shank, 25,000 lbs., Raw Steel)
Product Overview
The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).
This 2-5/16" trailer ball features a ball capacity of 25,000 lbs. It features a 1-1/4" shank diameter, a 2-5/8" shank length, 1" of rise and a raw steel finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
Key Features & Attributes
- Fits 2-5/16" couplers and accepts up to 25,000 lbs. GTW
- 1" shank rise for precise trailer leveling
- Constructed from high-strength raw steel
- Heat-treated for optimum wear resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-19 specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Product Specifications
| Brand | CURT Manufacturing |
| Part Number | 40086 |
| NTP Number | 72-1931 |
| UPC Code | 612314400867 |
| AAIA Code | BKDK |
| Ball | Capacity 25,000 LBS |
| Ball | Diameter 2-5/16 IN |
| Finish | Raw |
| Hub | Warehouse (HUB_USA) D25 |
| Master | Case Qty 6 |
| Material | FORGED STEEL |
| Pallet | Qty 20.000 |
| Parcel | Allowed Yes |
| Part | Type 2 5/16" Trailer Ball |
| Shank | Diameter 1.25 |
| Shank | Length 2 5/8 IN |
| Shank | Rise 1 IN |
| Shipping | Weight 4.300 |
| Torque | 450 FT LB |
